Equipment summary:
Walk-in constant temperature and humidity testing machine is consist of Control Panel, electrical panels, moisturizing plate blower, heater, humidifier, freezer. It provides a large spare to test the temperature and humidity for large-scale parts, semi-finished products, it applied to test products that large-scale or the quantity more, such as: computer terminals, vehicle parts.
Features:
- Large walk-in constant temperature and humidity testing machine has a very wide range of controlling the temperature and humidity that can fulfill user’s needs. It is stable, balanced heating and humidification performance, , it also can be high accuracy and high stability for temperature and humidity control performance,

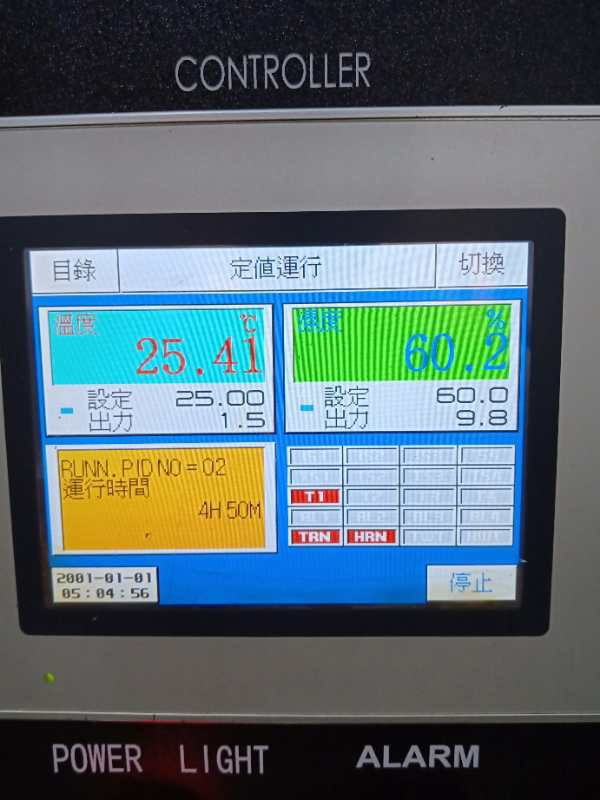

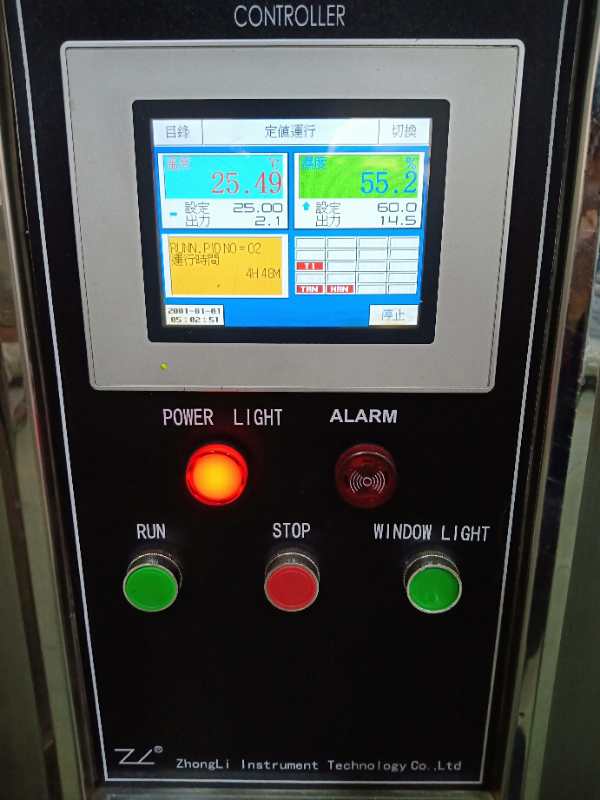

- Large walk-in constant temperature and humidity testing machine is equipped with high-precision intelligent thermostat, controller of temperature and humidity using touch-screen display. Optional equiped with temperature and humidity records
- Refrigeration circuit of large walk-in constant temperature and humidity testing machine automatically select to operate performance of refrigeration circuits, so that it starts cooling at high-temperature state.
- Door of large walk-in constant temperature and humidity testing machine with large viewing window for observation of the testing sample.
- Large walk-in constant temperature and humidity test machine is equipped with advanced security, protective device leak circuit breakers, over-temperature protective device, lack phase protective devices and lack water protector.
Corresponding standard :
1. GB11158 Technical conditions for high-temperature testing room
2. GB10589-89 Technical conditions for low-temperature testing room
3. GB/T10586-89 technical conditions for humidity testing room
4. GB/T2423.1-2001 testing methods for low-temperature
5. GB/T2423.2-2001 testing methods for high-temperature
6. GB/T2423.3-93 technical conditions for humidity testing room
7. GB/T2423.4-93 testing method for alternating hot and humid
8. IEC60068-2-1.1990 testing methods for low-temperature
9. IEC60068-2-2.1974 testing methods for high-temperature
10. GJB150.3 High-temperature test
11. GJB150.4 Low-temperature test
12. GJB150.9 muggy test
13. GB/T2423.22 temperature test
Applicable Industry:
Used in defense industry, aerospace industry, automation components, automotive parts, electrical and electronic parts, plastics, chemical, pharmaceutical industries and related products
Technical parameters:
| Model | ZL-6003 | |
| Size (cm) | According to customer specified size for design |
| Temperature range | -65℃~+100℃
( A:0℃ B:-20℃ C:-40℃ D:-65℃ ) |
| Humidity range | 20%~95%R.H. |
| Accuracy/uniformity | ±0.1℃；±0.1%R.H./±1.5℃；±5.0%R.H. |
| Accuracy/volatility | ±1.0℃；±2.0%R.H./±0.5℃；±3.0%R.H. |
| Cooling time | About 4.0℃/minute；about 0.7℃~1.0℃/minute |
| Inside material | stainless steel |
| Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, |
| Cooling sytem | Water-cooled / two-stage compressor |
| Protection | No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system |
| accessories | recorder(option),view window,50mm testing hole,PL lamp,clapboard,Dry and wet gauze ball |
| controller | Korea “TEMI” or Japan“OYO”brand option |
| compressor | France's “Tecumseh” Brand |
| power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
