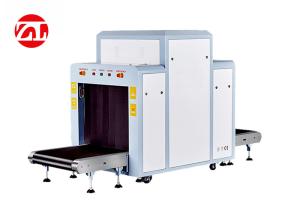

100100 X Ray Scanner For Airport Customs Baggage Security Checking

Product name : 100100 X-Ray Scanner for Airport Customs Baggage Security Checking

Conveyor speed : 0.22 m seconds

Maximum load capacity : 250Kg

Penetration : 34mm steel plate

Noise : ≤58dB

Channel size : 1000 (W) x 1000 (H) mm

Conveyor height : 345mm

Net weight : 1000KG

Brand Name : ZL

Model Number : ZL-4005

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : 100100 X-Ray Scanner for Airport Customs Baggage Security Checking is packaged within wooden case.

Contact Now

100100 X-Ray Scanner For Airport Customs Baggage Security Checking

100100 X-Ray Scanner for Airport Customs Baggage Security Checking

Scanner Function

Image processing functions: color, black and white, local enhancement, high wear, low wear, super increase
Organic rejection, inorganic removal, reverse color, highlighting, darkening, gray sweeping, magnification
Pseudo-color, organic enhancement, suspicious object alarm mark, edge enhancement processing

System Functions

Power-on self-test function, multi-level user management, image management, curve diagnosis
Equipment information query, multi-format image export, OSD operation function, image mirroring
1-64 times stepless amplification, operator training, precise positioning of package images
Remote operation software, one shutdown

Main Use and Scope of Use

Can quickly and effectively detect all kinds of dangerous goods. Widely used in bus stations, railway stations, high-speed rail stations, customs, government agencies, embassies, airports, convention centers, courts, tourist attractions, sports venues, post offices, express delivery companies, shoe factories, toy factories, luggage factories, handbag factories, hotels, schools and other security inspection occasions.

Basic Parameters

Conveyor speed	0.22 m/s
Maximum load capacity	250Kg
Penetration	34mm steel plate
Line resolution	Φ = 0.0787mm, wire
Penetration resolution	Φ = 0.127 mm, wire
Spatial resolution	Horizontal: Φ1.0mm, Vertical: Φ1.0mm
Noise	≤58dB

X-ray Generator

Tube voltage: 140KV (default), customizable according to customer requirements
Tube current: 0.2~0.6mA
Cooling / working time: cooling with sealing oil / 100%
Beam direction: divergence angle from the bottom diagonal (60°)

Radiation Safety Indicator

Single dose: less than 1 microsievert (μGy)
Leakage radiation dose rate: less than 0.35 microsievert (μGy)
Tested anywhere from 5cm outside the device surface
Meets and exceeds domestic and international health and safety standards
Efficient anti-radiation: double-layer staggered, wear-resistant, strong lead curtain
Ultra-thick 2~5mm lead plate to ensure safe and reliable equipment
Film Safety: Safe for SO1600 film

Installation Parameters

Channel size	1000 (W) x 1000 (H) mm
Conveyor height	345mm
Product size	3781mm (L) x 1290mm (W) x 1810mm (H)
Wooden box packaging size	2140mm (L) x 1350mm (W) x 1830mm (H)
Net weight	1000kg
Gross weight	1100kg
Display	Standard 19-inch (16:10/1440*900) display
Keyboard	PC keyboard, optional industrial keyboard
Operating temperature	(-20)°C - (+60)°C / working humidity 5% to 95% no condensation
Storage temperature	(-30)°C - (+70)°C / working humidity 5% to 95% no condensation
Working voltage	110~240VAC (-10%~+20%) 50/60±3Hz
Power	<1.0kw/h
Certification	Comply with electrical safety IEC standard, product meets CE requirements EMC/LVD/ROHS directive
