Fully Automatic Fabric Air Permeability Tester , No Discoloration And No Oxidation

Product name : Fully Automatic Fabric Air Permeability Tester

Pressure Range : 0～4000Pa Self-setting pressure drop

Measurable air permeability : 0.2～12000mm/s

Measurement error : ≤±1%

Measurable fabric thickness : ≤20mm

Suction volume adjustment : Data feedback dynamic adjustment

Brand Name : ZL

Model Number : ZL-5010A

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 60 sets / month

Delivery Time : 4-7 work days

Packaging Details : Fully Automatic Fabric Air Permeability Tester is packaged within wooden case.

Contact Now

Fully Automatic Fabric Air Permeability Tester

No Discoloration And No Oxidation

Product Overview

The instrument is used for the determination of the breathability of a variety of textile fabrics, including industrial fabrics, nonwoven fabrics, and other breathable materials.

\n\n Download Product Brochure\n \n

Standards Compliance

GB/T5453 GB/T13764 ISO9237 ISO7231 ISO5636 BS5636 ASTM D737 DIN 53887 JIS L1096 BS5636

Compatible with AFNOR G07-111, ASTM D737, BS 5636, DIN 53887, EDANA 140.1, ISO 9237, JIS L1096-A, TAPPI T251 and other international standards.

Performance Features

Automatic replacement of orifice plate, automatic parameter correction, one-key test completion
Patented product with full-range automatic measurement of air permeability
All industrial aluminum alloy rack design - no discoloration and no oxidation for 30 years
industrial-grade 32-bit high-speed embedded processor with 2500 f/s sampling frequency
Exclusive patented sample clamping method - 1 second clamping, 3x more efficient
Test body seal air duct design - no external environmental impact error
Imported fan with inverter motor control - ultra-quiet and high efficiency
RS 232C data port for PC connectivity
Bilingual interface support (Chinese and English optional)
Menu-style interface with freely switchable test units and direct printing
Optional micro-printer or A4-pin printer for direct report output
Continuous test mode with bidirectional computer/instrument control

Technical Specifications

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

Parameter	Specification
Pressure Range	0\uff5e4000Pa Self-setting pressure drop
Measurable Air Permeability	0.2\uff5e12000mm/s
Measurement Error	\u2264\u00b11%
Measurable Fabric Thickness	\u226420mm
Suction Volume Adjustment	Data feedback dynamic adjustment

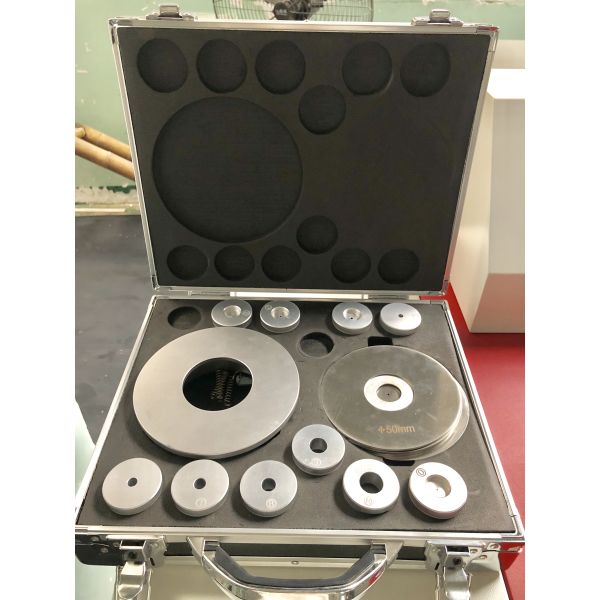

Sample Area Setting	20cm\u00b2 (Optional: 5cm\u00b2; 50cm\u00b2; 100cm\u00b2; \u042450mm \u224819.6cm\u00b2; \u042470mm \u224838.5cm\u00b2)
Test Plates	Automatic Replacement, Automatic Measurement
Data Processing Capacity	\u2264 2500 tests
Data Output	High-definition touch screen; A4 Chinese print; computer interface (optional)
Power Source	AC 220V\u00b110V 50Hz
Weight	110Kg
Dimensions (L\u00d7W\u00d7H)	600\u00d7750\u00d71250mm

Product Images

Fully Automatic Fabric Air Permeability Tester , No Discoloration And No Oxidation
