Motorcycle Helmet Collision Penetration Resistance Performance Testing Machine

Brand Name : ZL

Model Number : ZL-1814

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100 set per month

Delivery Time : 10-15 days

Packaging Details : Motorcycle Helmet Collision Penetration Resistance Performance Testing Machine is Packaged within wooden case

Product name : Motorcycle Helmet Collision Penetration Resistance Performance Testing Machine

Power : 220v 50hz

Maximum impact height : 3M

Acceleration sensor measuring range : 0-1000g

Measurement accuracy : 0.1ms

Collection frequency response range : 0-1000Hz

Warranty : 12 month

Key words : Collision Penetration Resistance

Contact Now

Motorcycle Helmet Collision Penetration Resistance Performance Testing Machine

This specialized testing equipment is primarily used for motorcycle helmets and serves as essential testing apparatus for various helmet manufacturers, testing agencies, universities, and research institutes. The machine utilizes high-precision acceleration sensors to ensure accurate and reliable measurements, offering simple, quick, and precise testing capabilities.

Compliance Standard

GB811-1998 standard

Technical Parameters

Parameter	Specification
Maximum Impact Height	3000MM (meets both impact and penetration measurement height requirements)
Acceleration Sensor Measuring Range	0-1000g
Helmet Height	A (1829 ± 2mm, 1384 ± 2mm) B (1600 ± 2mm)
Falling Helmet Weight	4 kg (small), 5 kg (medium), 6 kg (large) each one
Band Cut-off Point	-2.5 ~ -4DB
Attenuation Slope	-9 ~ -24DB/oct
Reaction Time Measurement Accuracy	0.1ms
Measurement Uncertainty	5%
Collection Frequency Response Range	0-1000Hz
Power Supply	VC380V, 50Hz

Motorcycle Helmet Collision Penetration Resistance Performance Testing Machine

Product Tags:

impact test equipment

temperature test machine

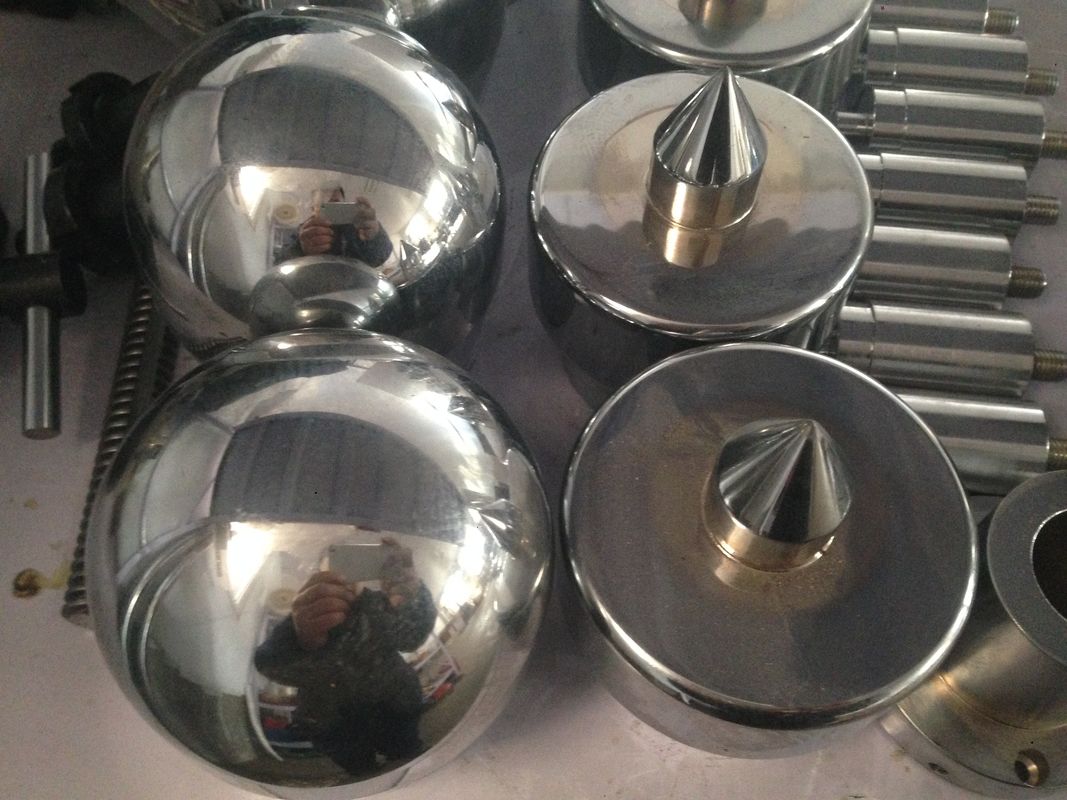

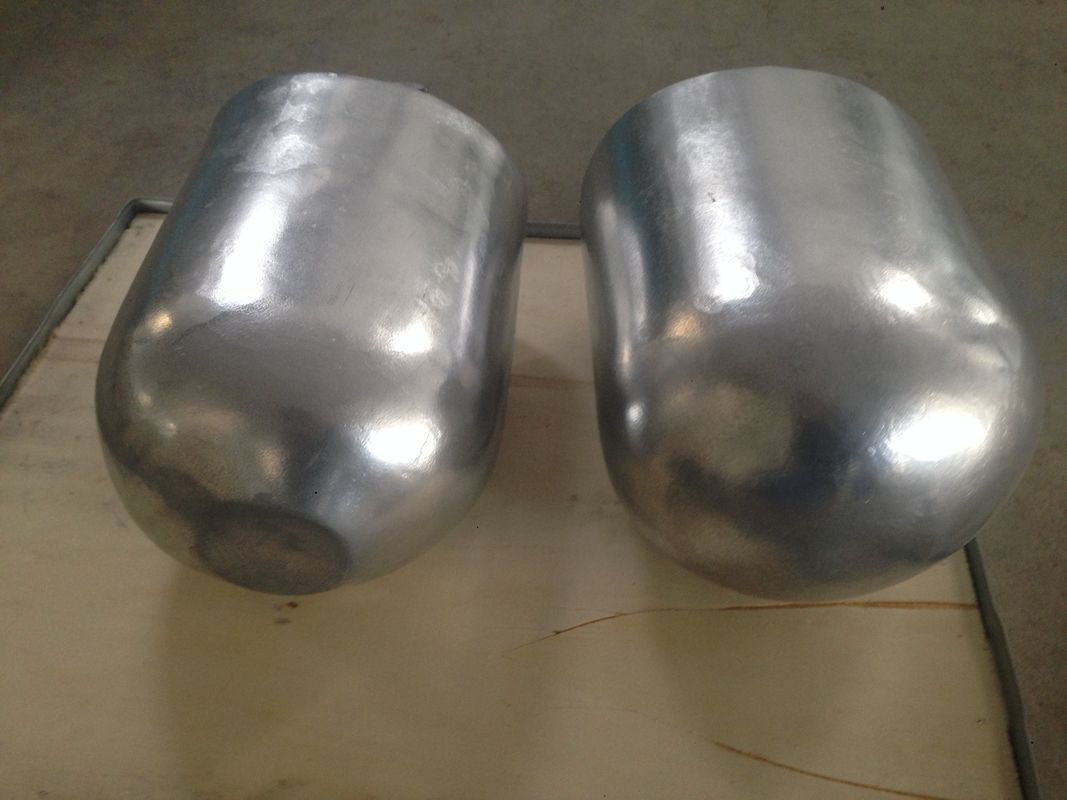

Motorcycle Helmet Collision Penetration Resistance Performance Testing Machine Images
